Offshore Solar Power
Offshore Solar Power
Unit platform specification
|
Size |
Length(m) : 11, Width(m) : 10, Height(m) : 4.05 |
|---|---|
|
Solar module capacity and quantity |
420W, 36EA |
|
Installed capacity (kW) |
15.12 (=420W x 9ea x 4column) |
|
Material |
SS275(steel) |
|
|

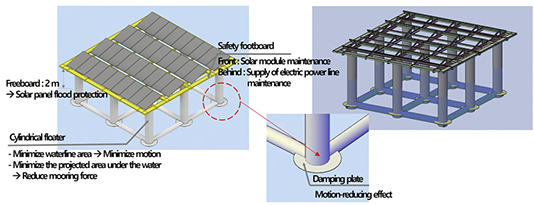

Major Features
Semi-submersible type is excellent in reducing wave loads.
Damping plates are applied to the lower part of floater to minimize motions.
In a significant wave height of 2.5 m, the floater has roll motion of ~2.56 degrees and vertical acceleration of ~0.08g.
Freeboard of 2.0m is applied to prevent flooding of topside facilities.
Floating steel structure and concrete anchor blocks are designed for easy installation and maintenance.
Korea Patent
Patent No. 10-2085864 in 2 March, 2020

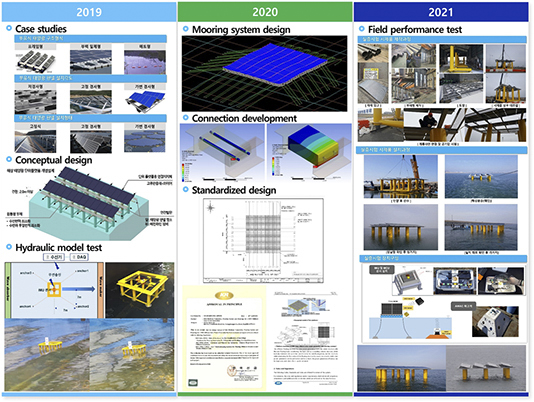

R&D for Technolgy

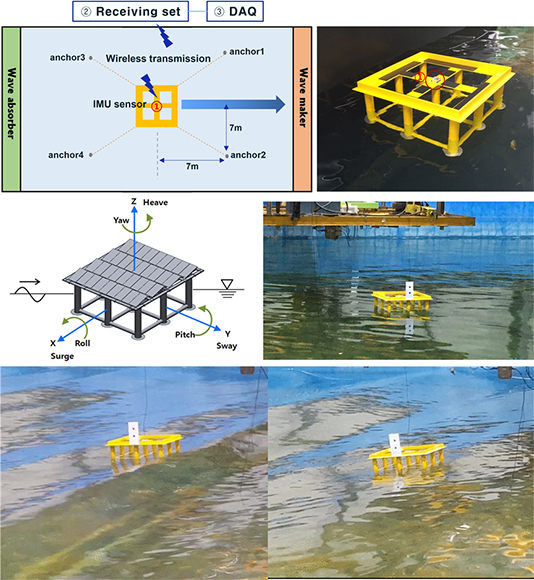

Hydraulic model test

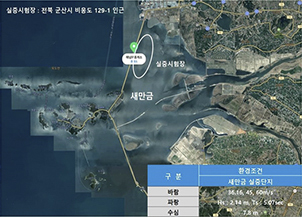

Field test

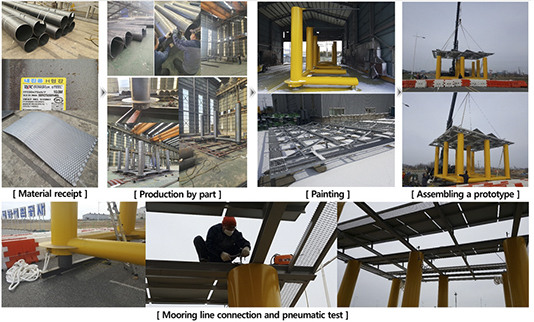

Prototype production process

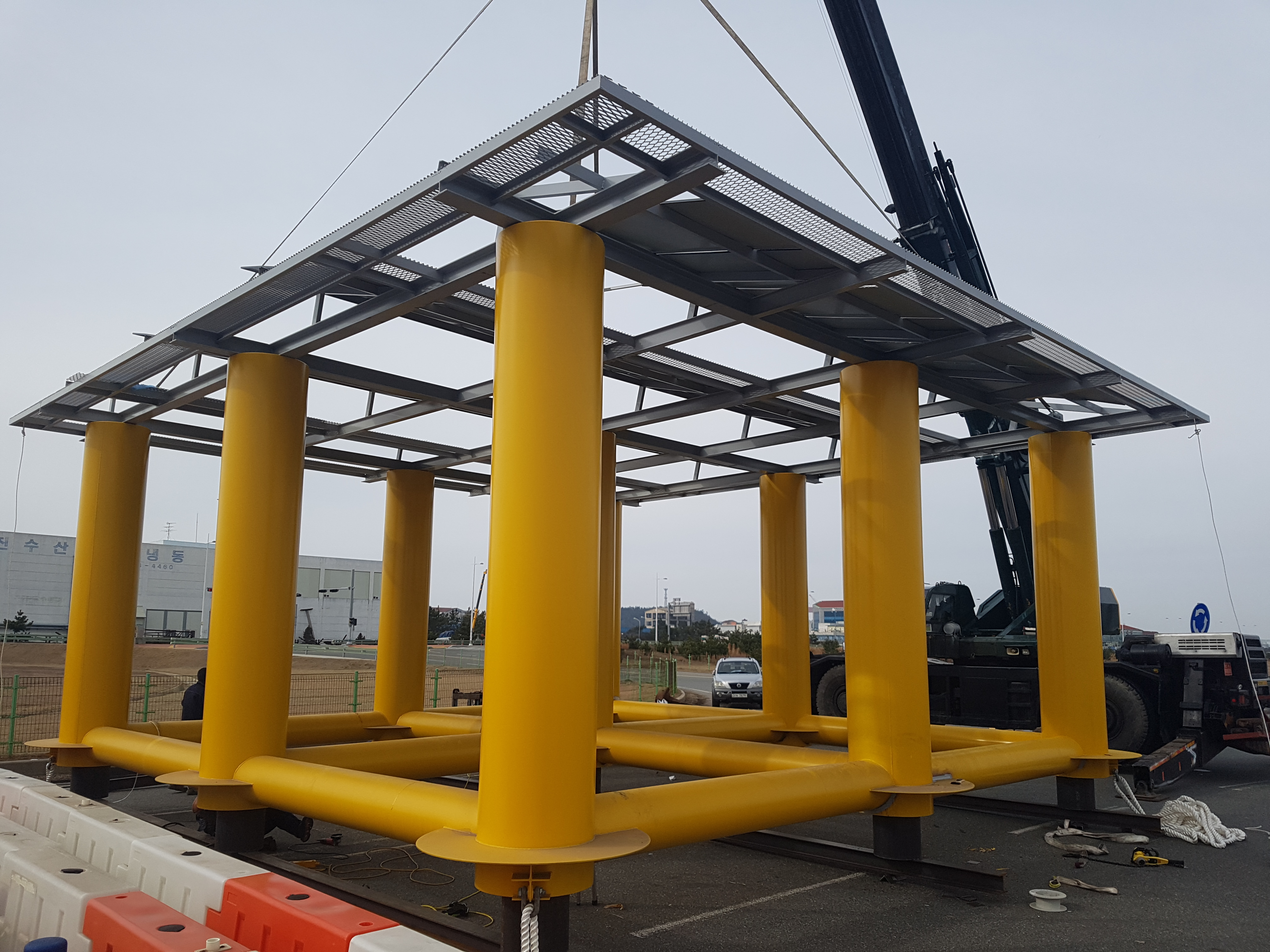

Prototype installation process

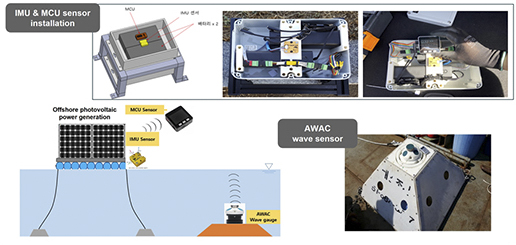

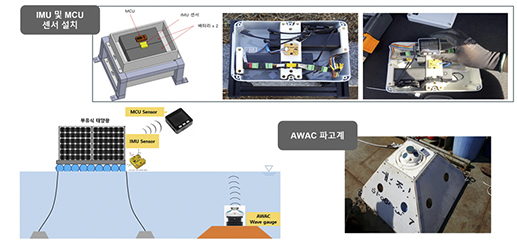

Device configuration of Field performance test
Field performance test from March 5, 2021 to April 15, 2021
